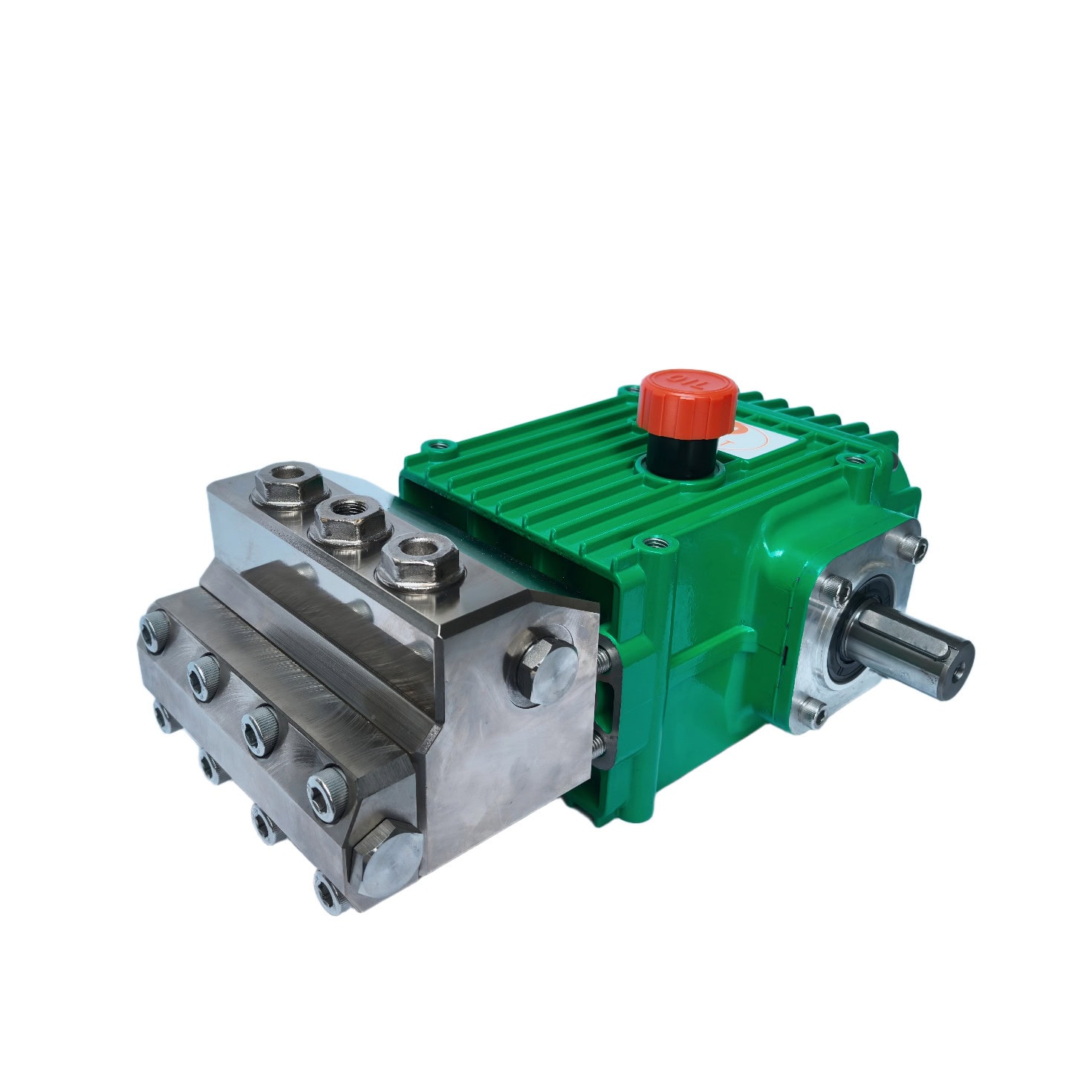

high-pressure plunger pump

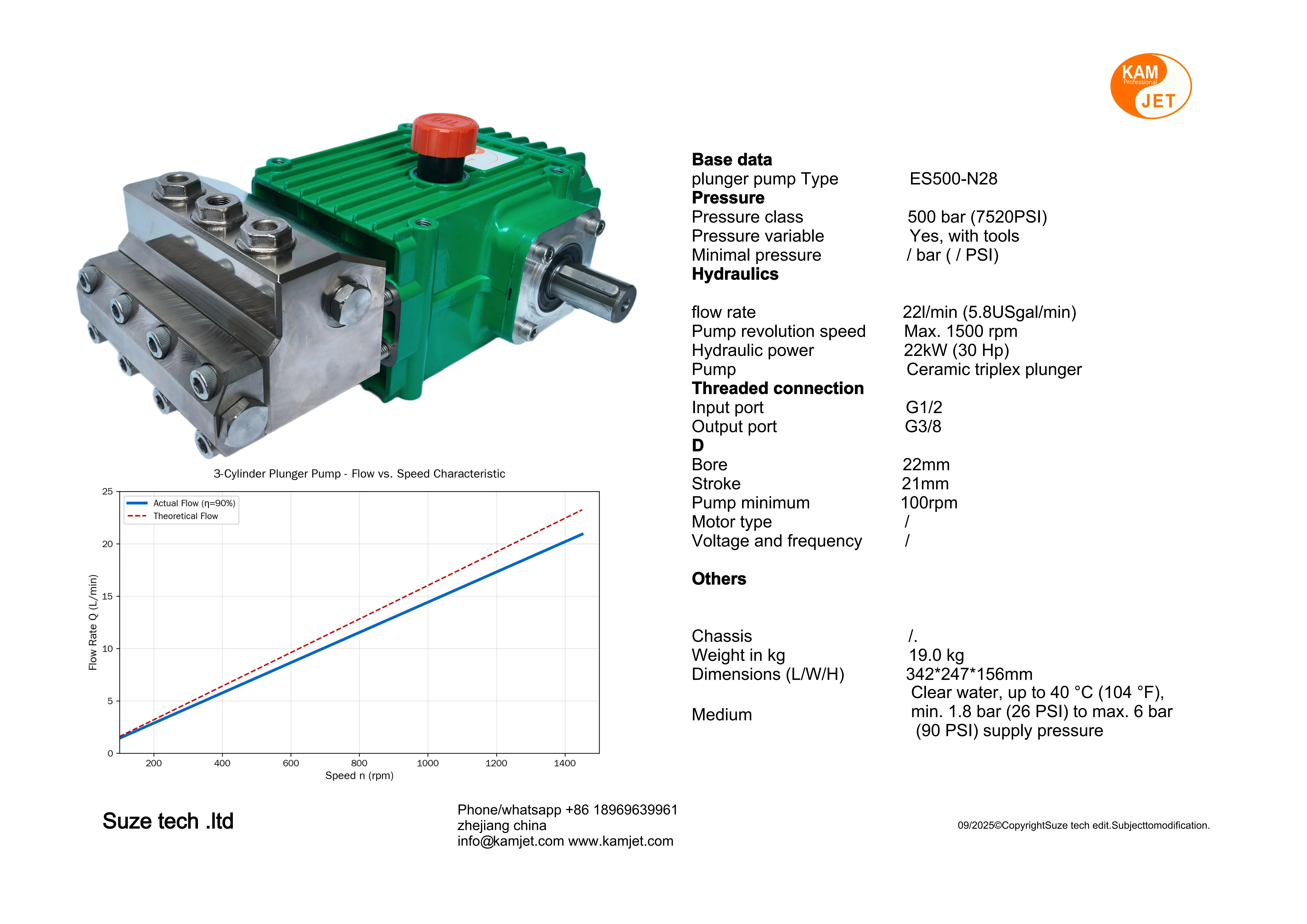

Base data
plunger pump Type E. S500-N28
Pressure
Pressure class 500 bar (7520PSI)
Pressure variable Yes, with tools
Minimal pressure / bar ( / PSI)
Hydraulics
flow rate
Pump revolution speed Max. 15
00 rpm
Hydraulic power 22kW (3
0 Hp)
Pump Ceramic triplex plunger
Threaded connection
Input port G1/2
Output port G3/8
D
Bore 22mm
Stroke 21mm
Pump minimum 100rpm
Motor type /
Voltage and frequency
22l/min (5.8USgal/min)
/
Others
Chassis /.
Weight in kg 19.0 kg
Dimensions (L/W/H) 342*247*156mm
Medium
Clear water, up to 40 °C (104 °F),
min. 1.8 bar (26 PSI) to max. 6 bar
(90 PSI) supply pressure
